The Foxhound 4 Database Monitor

A white paper by Breck Carter

2016 11 15  - updated 2018 09 16

Foxhound Versus The Alternatives
Hallmarks of Foxhound

The Foxhound Menu Page
The Monitor Page
The Sample History Page
The Connection History Page

Use Cases...
1: Runaway CPU Usage
2: Runaway Memory Usage
3: Large Deployments

Introduction      [Top]

A database monitor is a computer program that measures the activity of a database management system and displays those measurements in a meaningful way so you can see everything's OK... or quickly learn about problems and threats to performance and availability.

Foxhound 4 is a third-party database monitor for SAP® SQL Anywhere®. Here's how it works:

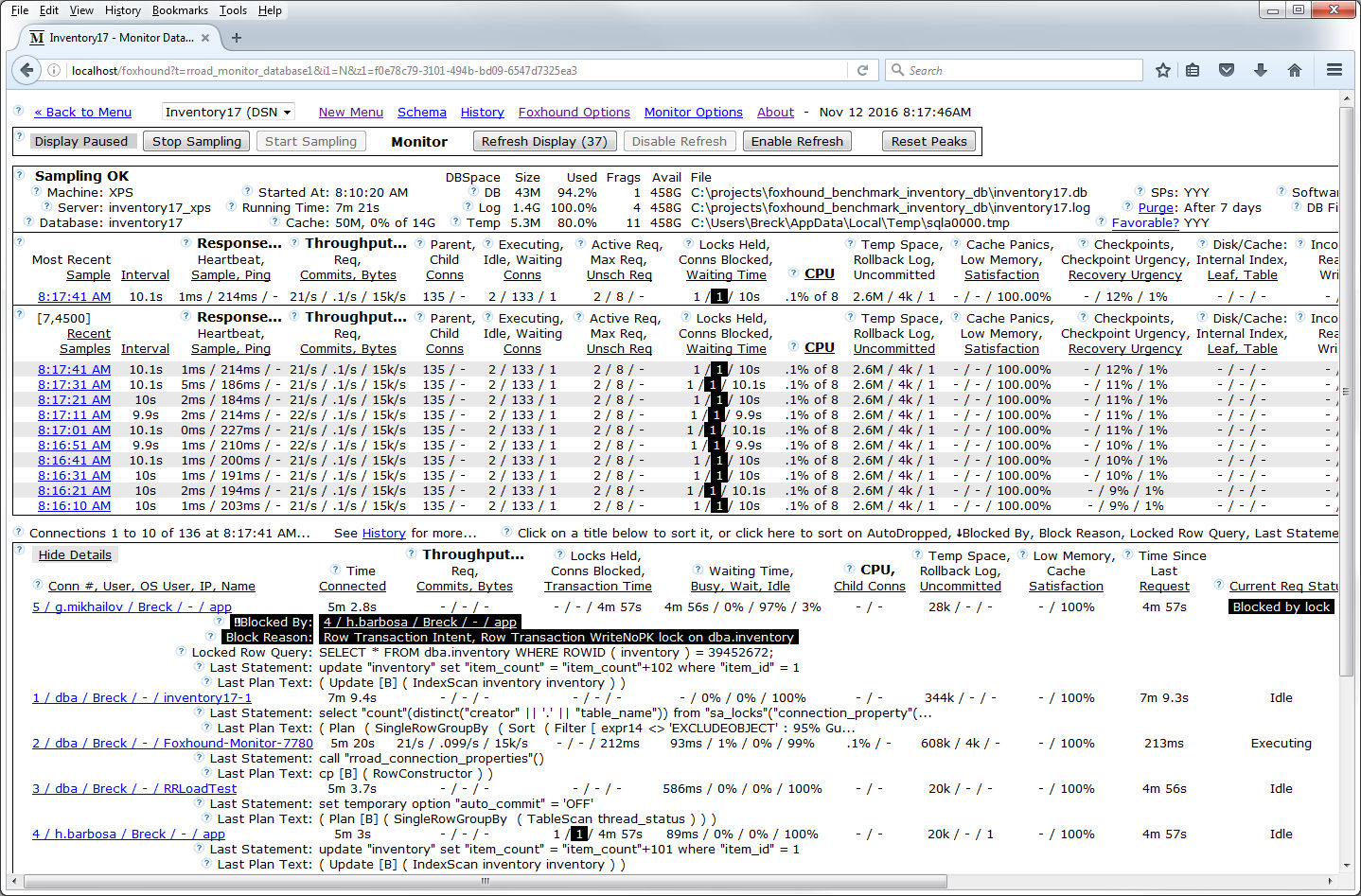

Figure 1 shows the Foxhound Monitor page for a lightly-loaded SQL Anywhere server with 135 connections, one of which is blocked by an uncommitted operation made by a long-running transaction on another connection.

Figure 1. The Foxhound Monitor Page Showing An Idle Server With One Blocked Connection

New in Foxhound 4:  White-on-black  and  grey highlighting  is now used instead of  colors like this  and  this .

Foxhound Versus The Alternatives      [Top]

Table 1 compares Foxhound Version 4 with several alternative products:

Table 1. Comparing Foxhound 4 With Alternative Products
Product 5 SQL Anywhere
Monitor 17
Sybase Central
Monitor 16
SQL Anywhere
Cockpit 17
Utility 16
Foxhound 4
Primary Purpose Health and
Health, availability
and performance
Health, availability
and performance
Setup Required A lot Everything Some Some Everything Very little
Collection Interval 30 sec default,
10 sec minimum
1 sec fixed Frequent 4 sec default,
1 sec minimum
1 sec default,
1 sec minimum
10 sec fixed
Presentation Graphs, Text Graphs Graphs, Text Text Graphs Text
Implementation Adobe Flash Java HTML5 Native Windows Native Windows HTML
Historical Data Limited No No No No Yes
Connection History No No No No No Yes
Adhoc Reporting No No No No No Yes
SQL Anywhere
Some, Variable All, Variable All, Fixed All, Variable All, Variable Some, Fixed
Peak Highlighting No No No No No Yes
No No No No No Yes
Alerts 9 point-in-time
No Some point-in-time
No No 34 conditions
Alert "All Clear" No No No No No Yes
Alert Emails Yes No No No No Yes
Ping New Connections No No No No No Yes
Drop Connection Manual No Manual Manual No AutoDrop
Docs Minimal Minimal Minimal Minimal Minimal Extensive
Target Databases
11, 12, 16, 17 11, 12, 16 17 3 11, 12, 16 5.5, 6, 7, 8, 9, 10,
11, 12, 16, 17
6, 7, 8, 9, 10, 11,
12, 16, 17 4
Target Hosts
Local, Network Local, Network Local, Network Local, Network Local Local, Network
MobiLink and Relay
Server Support
Yes No No No No No
What's Good? Pretty Free Pretty Free Free Businesslike
What Else? Modal Hideous Modal Basic Hideous Dense

1. The Sybase Central Performance Monitor is not available in SQL Anywhere 17.
2. The DBconsole Utility is not available in SQL Anywhere 17.
3. The SQL Anywhere Cockpit does support SQL Anywhere 16 databases running on SQL Anywhere 17.
4. Foxhound 4 does support SQL Anywhere 5.5 databases running on SQL Anywhere 6 and later versions.
5. The new SQL Anywhere Profiler 17 is omitted because it's complementary rather than comparable.

Primary Purpose: This is how the products are advertised.

Setup Required: Both DBConsole and Foxhound let you "connect and go" to see something useful while the others require varying degrees of effort to get started.

Collection Interval: 10 seconds is tradeoff between accuracy and efficiency.

Presentation: Nobody's asking for graphs so they remain a low-priority item for Foxhound.

Implementation: How the presentation is implemented explains a lot about how a product looks and feels.

Historical Data: Only Foxhound provides random access to every measurement stored in the database.

Connection History: Only Foxhound lets you view the entire history of a single connection.

Adhoc Reporting: Only Foxhound recognizes that all your data belongs to you and should be accessible.

SQL Anywhere Statistics: Like the collection interval, Foxhound's choice of which statistics to gather is fixed.

Peak Highlighting: This is what Foxhound does instead of graphs.

Value-Added Calculations: Latency, Throughput, CPU % and many other values are derived from raw statistics.

Alerts: Events happen once, conditions go into and out of effect.

Alert "All Clear": It's important to know when an Alert condition is no longer in effect.

Alert Emails: The SQL Anywhere Monitor sends emails for Alerts, Foxhound also sends All Clear emails.

Ping New Connections: Only Foxhound checks that the target database is accepting new connections.

Drop Connection: Only Foxhound can automatically drop runaway connections.

Docs: The Foxhound Help includes dozens of performance tips.

Target Databases Supported: Foxhound support for Version 5.5 databases is fading but not gone.

Target Hosts Supported: The Windows Performance Monitor reports on the computer it's running on.

MobiLink and Relay Server Support: The SQL Anywhere Monitor is the only game in town for this.

What's Good? "If you had to use a single word to describe what you like about this product, what would it be?"

What Else? "Give me another word, this time describing what you don't like about this product."

Hallmarks of Foxhound      [Top]

Here's a list of Foxhound characteristics you can take advantage of:

  1. Functionality out of the box  Foxhound just requires a connection string or DSN to get started; the next thing you see is your database in the Foxhound Monitor page; there are no widgets or wizards to deal with, and no need to pick and choose which statistics to display.

  2. Guidance  Foxhound provides on-screen guidance for all the data it displays and all the options it offers. The column titles, tooltip text, field descriptions, context-sensitive Help and performance tips are all designed to help you understand what you are looking at and what you can do about it.

  3. Information at a glance  Foxhound presents a straightforward interface for professional developers with no graphs, waveforms or "data visualization" artwork. All the relevant data and value-added calculations are gathered together on single pages with peak highlighting and hypertext links to scroll through history and open different views in new browser tabs.

  4. Open access  Foxhound provides read-only SQL access to all the historical data pertaining to your database: it's your data, you own it. The Foxhound Help contains sample queries, and to make your own queries easier to write important internal primary key values are displayed together with the data on the Monitor and other pages; e.g., sampling_id, sample_set_number and the new connection_id_string.

  5. Legacy support  Foxhound supports target databases running all versions of SQL Anywhere from 6 to 17. And while it's true that older versions of SQL Anywhere don't provide (and Foxhound doesn't display) modern performance statistics, statistics that are available do get displayed, not lowest common denominators.

  6. Robustness  The Foxhound Monitor keeps on trying to connect to the target database during an outage. Foxhound also silently handles invalid performance statistics, and it keeps working after it throws an exception, thus meeting the definition of robustness: "The degree to which a system or component can function correctly in the presence of invalid inputs or stressful environmental conditions."

  7. Dogfooding  Foxhound is regularly run against the Foxhound database itself; to test new features, sure, but primarily to look for performance bottlenecks. Foxhound is also the first tool of choice on client performance and tuning assignments; that's how the Foxhound Monitor was created in the first place, on assignment in 2003 as a Blocked Connection Display for a SQL Anywhere 9 database at UNO Money Transfers. The Schema Display feature was created even earlier, in 1998, for an immense Oracle database at Princess Margaret Hospital... which makes 2018 the twentieth anniversary of Foxhound!

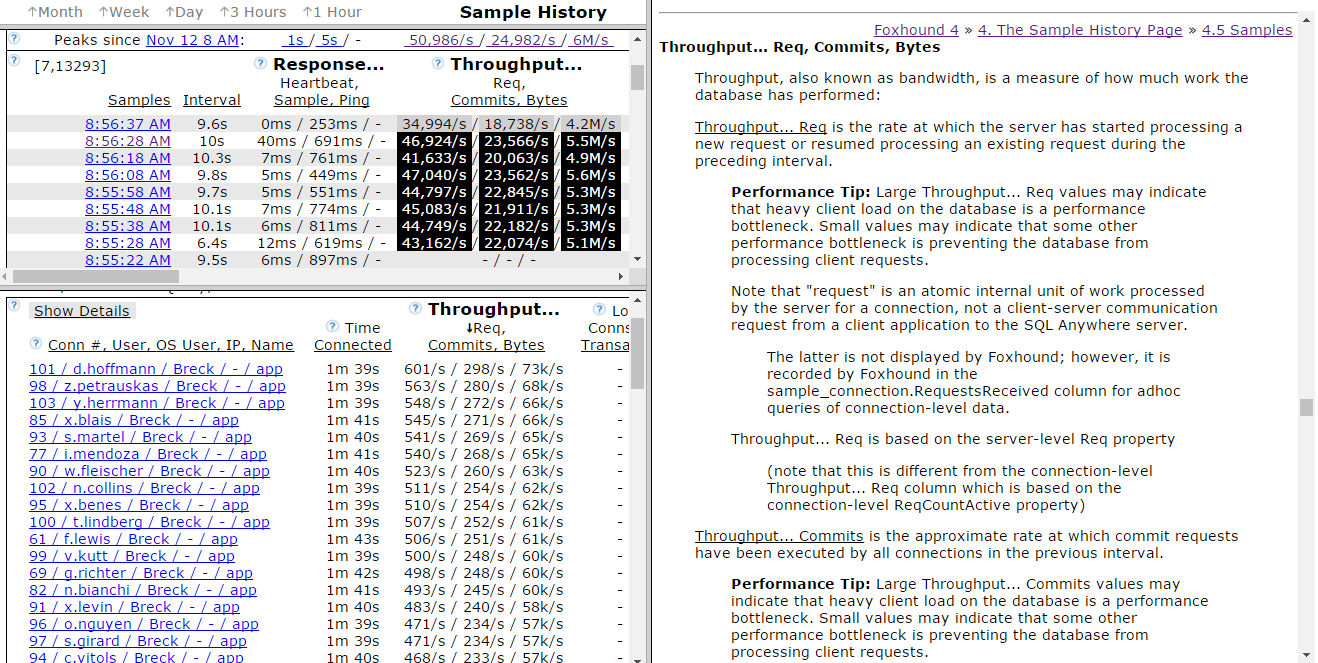

Figure 2 shows the value-added Throughput numbers at both the database and connection level, together with the corresponding database-level Help topics.

Figure 2. Foxhound Hallmarks: Information At A Glance With Side-By-Side Guidance

Feature: The Foxhound Menu Page      [Top]

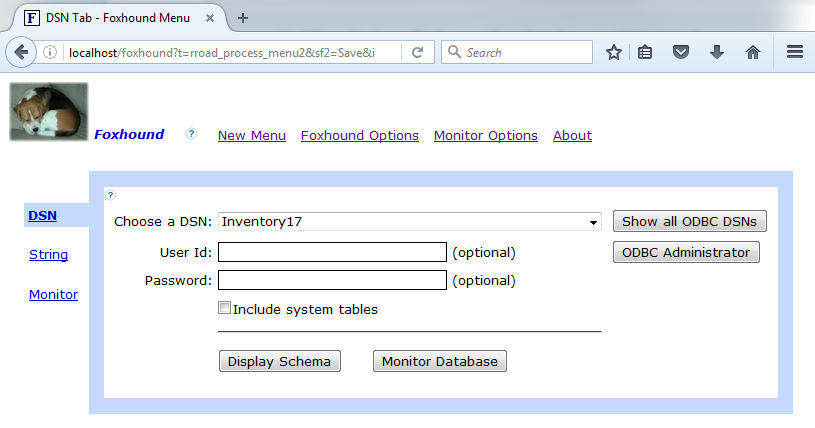

The Menu page is Foxhound's home page. The DSN tab in Figure 3 lets you pick a target database from a drop-down list of ODBC DSNs and then click on the Monitor Database button.

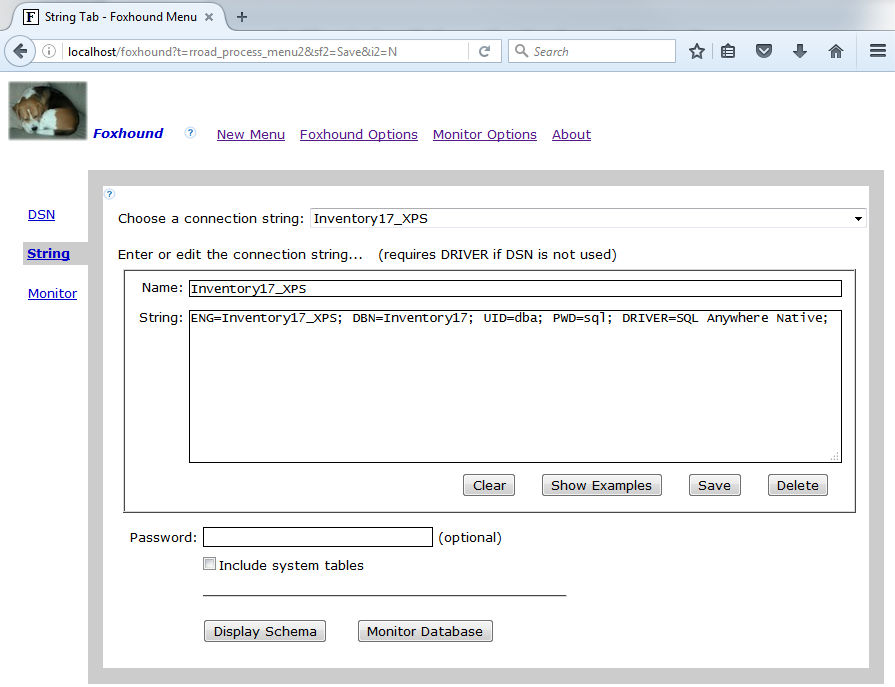

Alternatively, the String tab in Figure 4 lets you create a DSN-less connection to a target database.

Figure 3. The DSN Tab on the Foxhound Menu Page

Figure 4. The String Tab

Feature: The Monitor Page      [Top]

The Monitor page is automatically refreshed every 10 seconds to show a snapshot of current activity: the most recent 10 samples plus the most recent details of 10 connections.

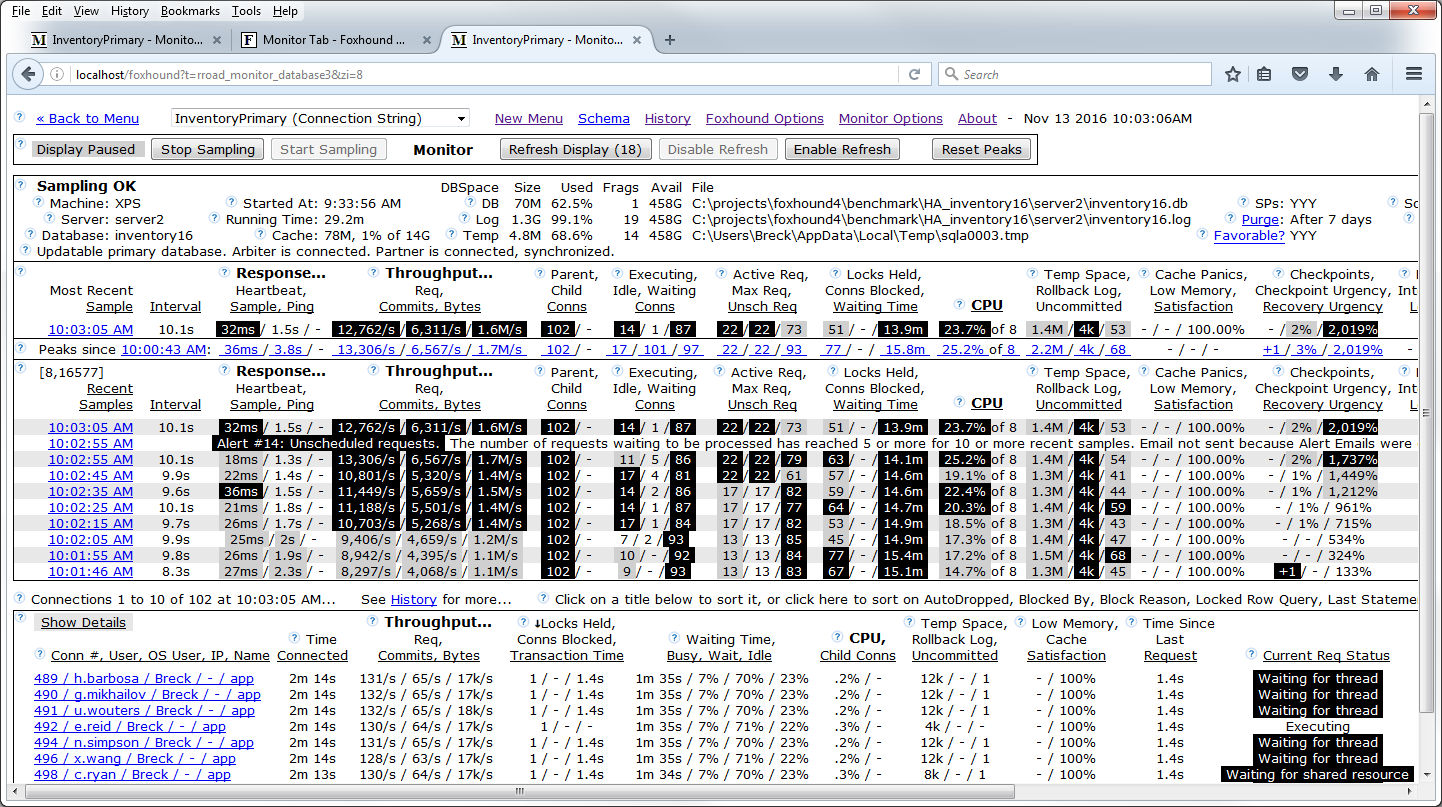

Figure 5 shows a busy primary database in a SQL Anywhere 16 High Availability setup. One Alert has been issued: Alert #14 Unscheduled requests indicates there's a bottleneck in satisfying client requests. The Max Req column shows that SQL Anywhere's "AutoMultiProgrammingLevel" has been adjusting the maximum number of tasks that can be active (Max Req is currently 22) but there's a serious backlog (Unsch Req 73).

Figure 5. The Monitor Page For A Busy Database

The Monitor page is filled with hypertext links, most of them opening new tabs showing historical data:

Sample History and Connection History pages are described in the next two sections.

Tip: The 10-second refresh cycle of the Monitor page is not related to the 10-second Foxhound sampling interval. The underlying Foxhound sampling process continues until instructed to stop, whether or not the Monitor page is displayed at all.

Feature: The Sample History Page      [Top]

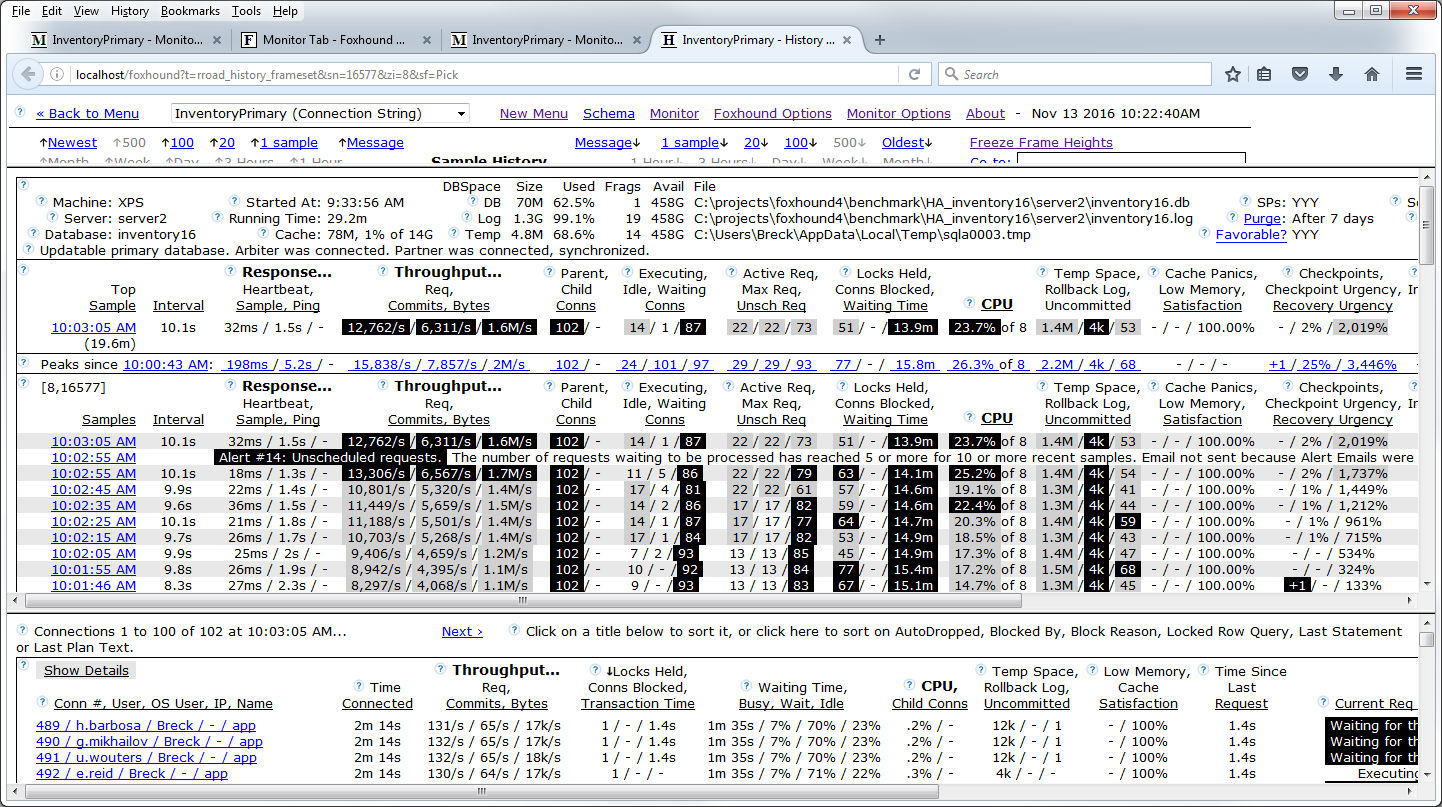

Figure 6 shows the same server as Figure 5, this time using the Sample History page which

Figure 6. The Sample History Page For The Same Busy Database

The connection links like 489 / h.barbosa / Breck / - / app open a Connection History page for the selected connection in a new tab. This "drill down" view is shown in the next section.

Feature: The Connection History Page      [Top]

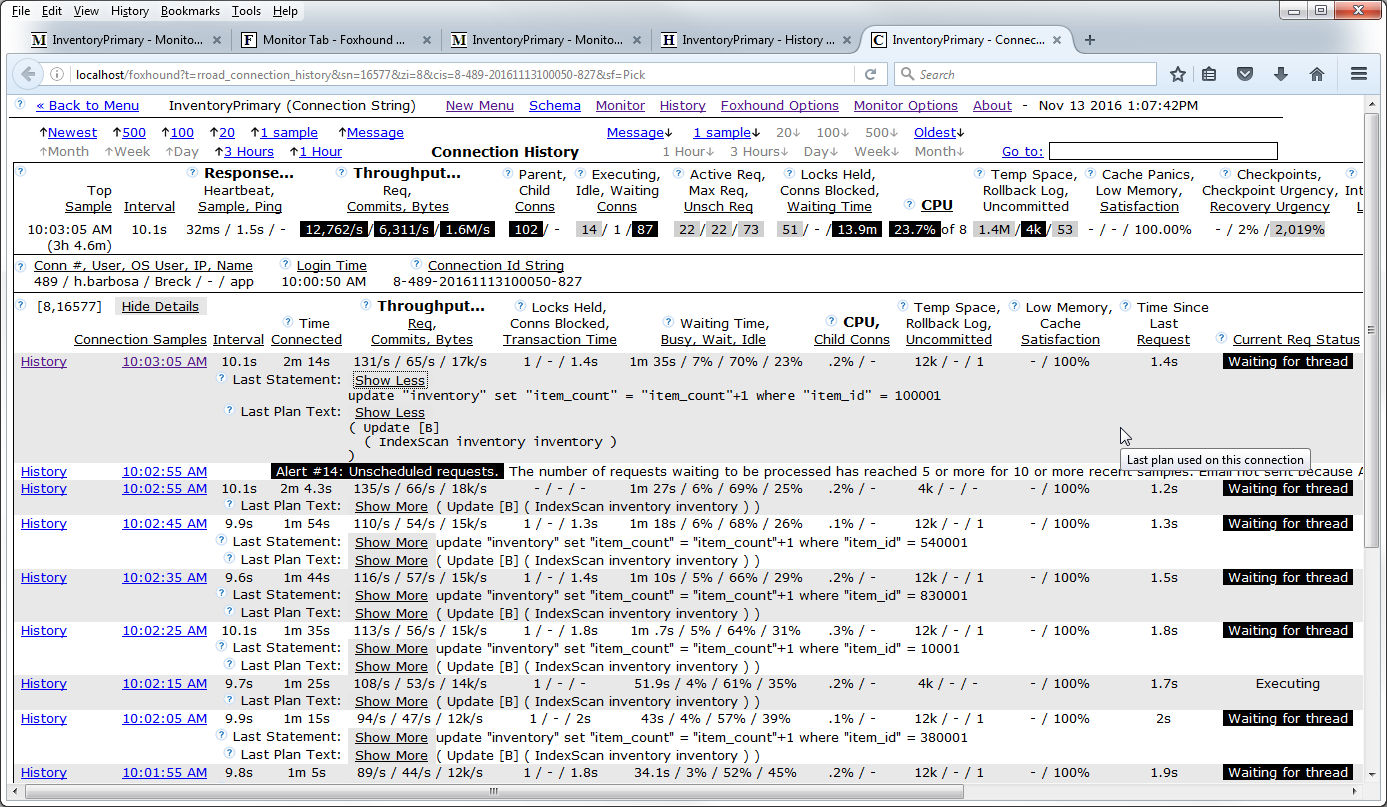

Figure 7 shows yet another view of the busy server in Figures 5 and 6. The Connection History page shows the history of performance statistics for one single connection over time. A snapshot of the most recent server and database statistics is included at the top of the page, but the rest of the page is devoted to that one connection.

Figure 7. The Connection History Page

Alert messages are displayed Connection History even when they have nothing to do with connection being displayed because it's always important to know what's going on.

Each History link opens a Sample History page in a new tab, positioned to the same sample, in effect returning to the "big picture" view shown in the previous section.

Tip: The Connection Id String uniquely identifies a connection by connection number and login time so the Connection History page doesn't mix up different connections with the same connection number. It is also useful for adhoc queries; that's the only reason it's displayed on the Connection History page, so you can copy and paste the value into your ISQL session.

Feature: Alerts      [Top]

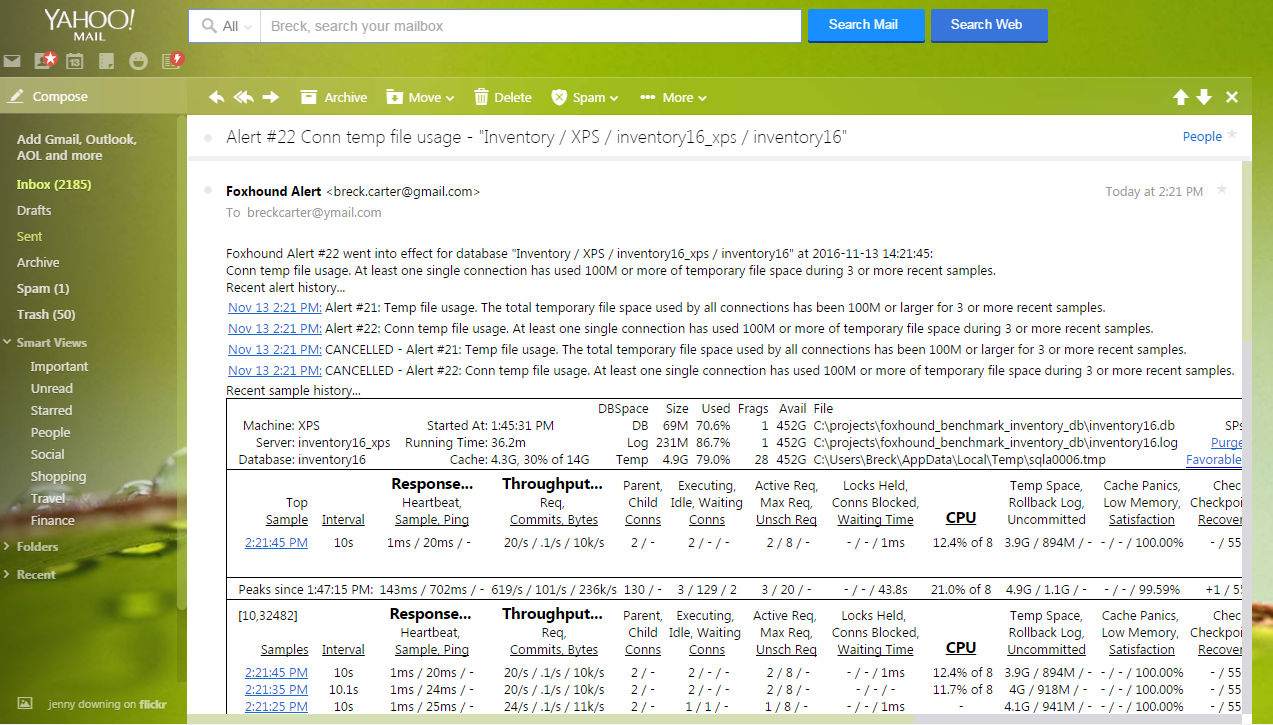

Figure 8 shows an Alert email for a connection that has violated a strict limit placed on the amount of temporary space a single connection can use; in this case, 100M for 3 or more samples (about 30 seconds).

The email subject line is a highly condensed summary:

What happened? Alert #22 Conn temp file usage
Where did it happen? Inventory
Where exactly was that? Machine XPS, Server inventory16_xps, Database inventory16

As well as describing this Alert, the body of the email contains a list of recent alerts for this database and a snapshot of the Monitor page when this Alert was issued.

Figure 8. An Alert Email

Tip: If Gmail doesn't display your Alert messages properly, try another client like Ymail.

Tip: If Google's SMTP server doesn't let you send Foxhound Alert messages, try another server like SendGrid.

Table 2 shows the default definitions for all the Alert conditions supported in Foxhound 4. The values shown in [square braces] can be changed for each target databases, except for [server2] which is determined at runtime.

Table 2. Default Alert Criteria
1 Database unresponsive Foxhound has been unable to gather samples for [1m] or longer.
2 Long heartbeat The heartbeat time has been [1s] or longer for [10] or more recent samples.
3 Long sample time The sample time has been [10s] or longer for [10] or more recent samples.
4 CPU usage The CPU time has been [90]% or higher for [10] or more recent samples.
5 Database disk space The free disk space on the drive holding the main database file has fallen below [1G].
6 Temp disk space The free disk space on the drive holding the temporary file has fallen below [1G].
7 Log disk space The free disk space on the drive holding the transaction log file has fallen below [1G].
8 Other disk space The free disk space on one or more drives holding other database files has fallen below [1G].
9 Arbiter unreachable The high availability target database has become disconnected from the arbiter server.
10 Partner unreachable The high availability target database has become disconnected from the partner database.
11 ServerName change The real server name has changed to [server2], possibly because of an HA failover or OnDemand move.
13 File fragmentation There are [1,000] or more fragments in the main database file.
14 Unscheduled requests The number of requests waiting to be processed has reached [5] or more for [10] or more recent samples.
15 Incomplete I/Os The current number of incomplete file reads and/or writes has reached [2] or more for [10] or more recent samples.
16 I/O operations There have been [1,000] or more disk and log I/O operations per second for [10] or more recent samples.
17 Checkpoint urgency The Checkpoint Urgency has been [100]% or more for [10] or more recent samples.
18 Recovery urgency The Recovery Urgency has been [1,000]% or more for [10] or more recent samples.
19 Cache size The cache has reached [100]% of its maximum size for [10] or more recent samples.
20 Cache satisfaction The cache satisfaction (hits/reads) has fallen to [90]% or lower for [10] or more recent samples.
21 Temp file usage The total temporary file space used by all connections has been [1G] or larger for [10] or more recent samples.
22 Conn temp file usage At least one single connection has used [512M] or more of temporary file space during [10] or more recent samples.
23 Blocked connections The number of blocked connections has reached [10] or more during [10] or more recent samples.
24 Conn blocking others At least one single connection has blocked [5] or more other connections during [10] or more recent samples.
25 Locks The number of locks has reached [1,000,000] or more during [10] or more recent samples.
26 Connections The number of connections has reached [1,000] or more for [10] or more recent samples.
27 Connection CPU The approximate CPU time has been [25]% or higher for at least one connection during [10] or more recent samples.
28 Long transaction The transaction running time has reached [1m] or more for at least one connection during [10] or more recent samples.
29 Cache panics There have been [1] or more cache panics per second for [10] or more recent samples.
30 Database read-only The target database has changed from accepting updates to read-only processing.
31 Database updatable The target database has changed from read-only processing to accepting updates.
32 Rollback log usage The total rollback log space used by all connections has been [1G] or larger for [10] or more recent samples.
33 Uncommitted operations The total number of uncommitted operations for all connections has reached [1,000,000] or more during [10] or more recent samples.
34 Long uncommitted The number of uncommitted operations has reached [1,000,000] or more while the transaction running time has reached [1m] or more for at least one connection.
35 Separate ping failed Foxhound has been unable to make a separate ping connection to the target database for [10] or more recent samples.

Feature: Schedules      [Top]

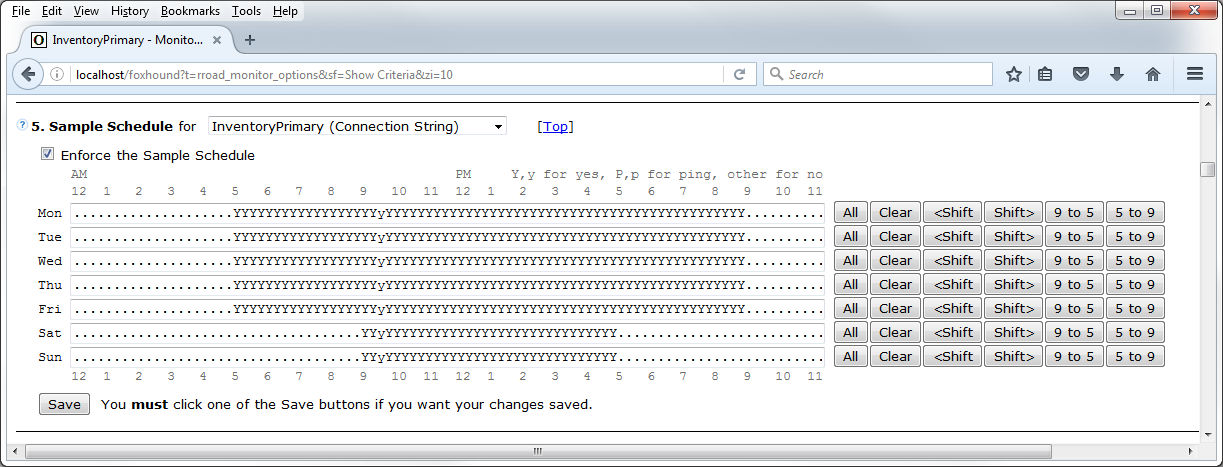

For every target database being monitored by Foxhound, four separate schedules may be created to turn specific features on and off in 15-minute intervals over a 7-day week:

Figure 9. Sample Schedule

New in Foxhound 4: Drop-down list boxes let you switch among different target databases on the Monitor Options page (shown above) as well as on the Monitor and Sample History pages.

Use Case 1: Runaway CPU Usage      [Top]

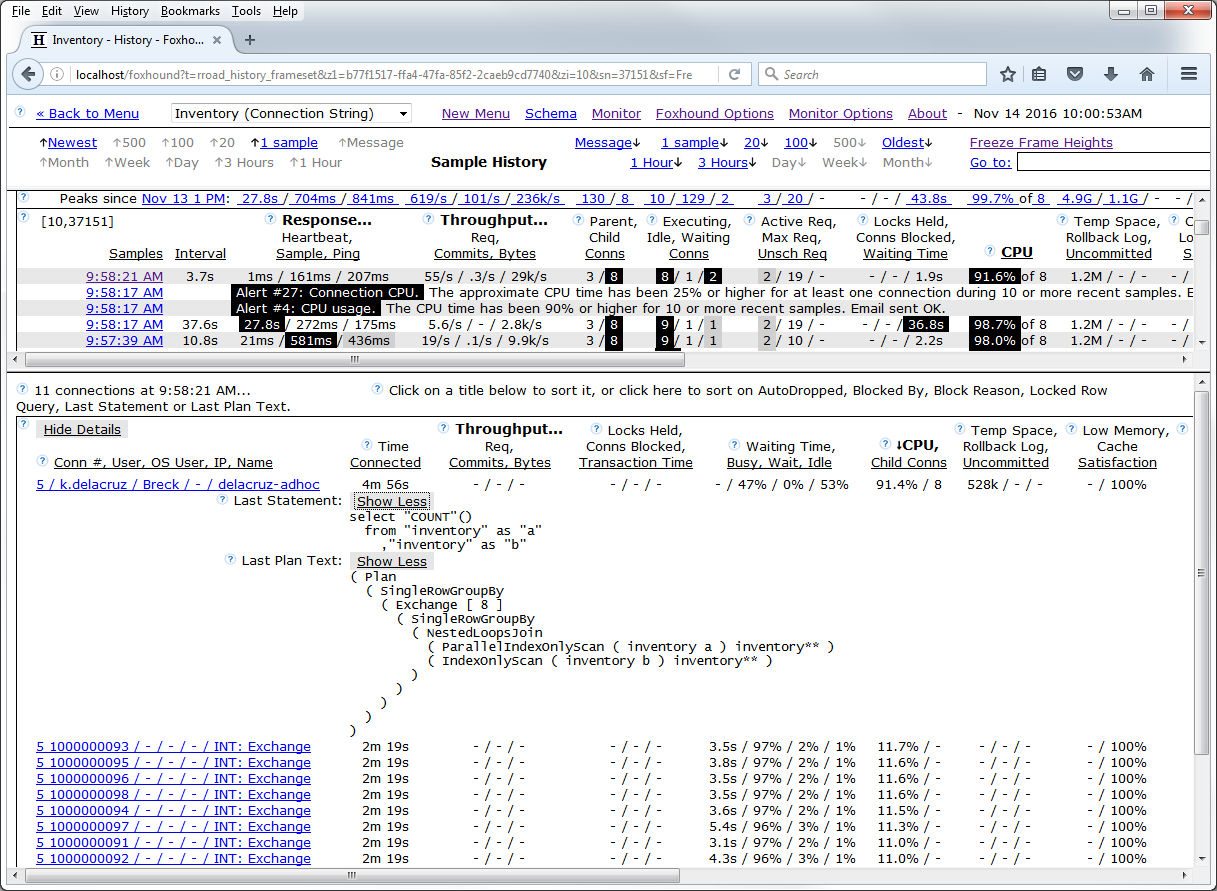

Figure 10 shows a single database connection that is using up all the CPU time (92% of 8 processors). The Parent, Child Conns column shows there are 3 external database connections and 8 internal child connections, and the connections frame at the bottom of the page shows that connection 5 is the external connection responsible for creating all 8 internal connections named "INT: EXCHANGE". The Last Plan Text field shows why: SQL Anywhere's intra-query parallelism feature is in full force with all 8 processors devoted to performing a "Parallel Index-Only Scan".

In this case, the details of the "why" may not be as important as the "what": Connection 5 is a runaway. A quick solution might be to drop connection 5, and Foxhound's AutoDrop feature can be used to automate that solution. Another solution might be to "turn down the volume" on the intra-query parallelism feature by setting the MAX_QUERY_TASKS database option to something other than "all processors"; e.g., 4, or even 1 to turn it off altogether. Other solutions might be to change the query to be less aggressive, or schedule it in off-peak hours.

Figure 10. Runaway Connection

Tip: The CPU percentages are a prime example of Foxhound's value-added calculations where Foxhound displays child connections together with their parents and adjusts the CPU percentages so they make sense.

Use Case 2: Runaway Memory Usage      [Top]

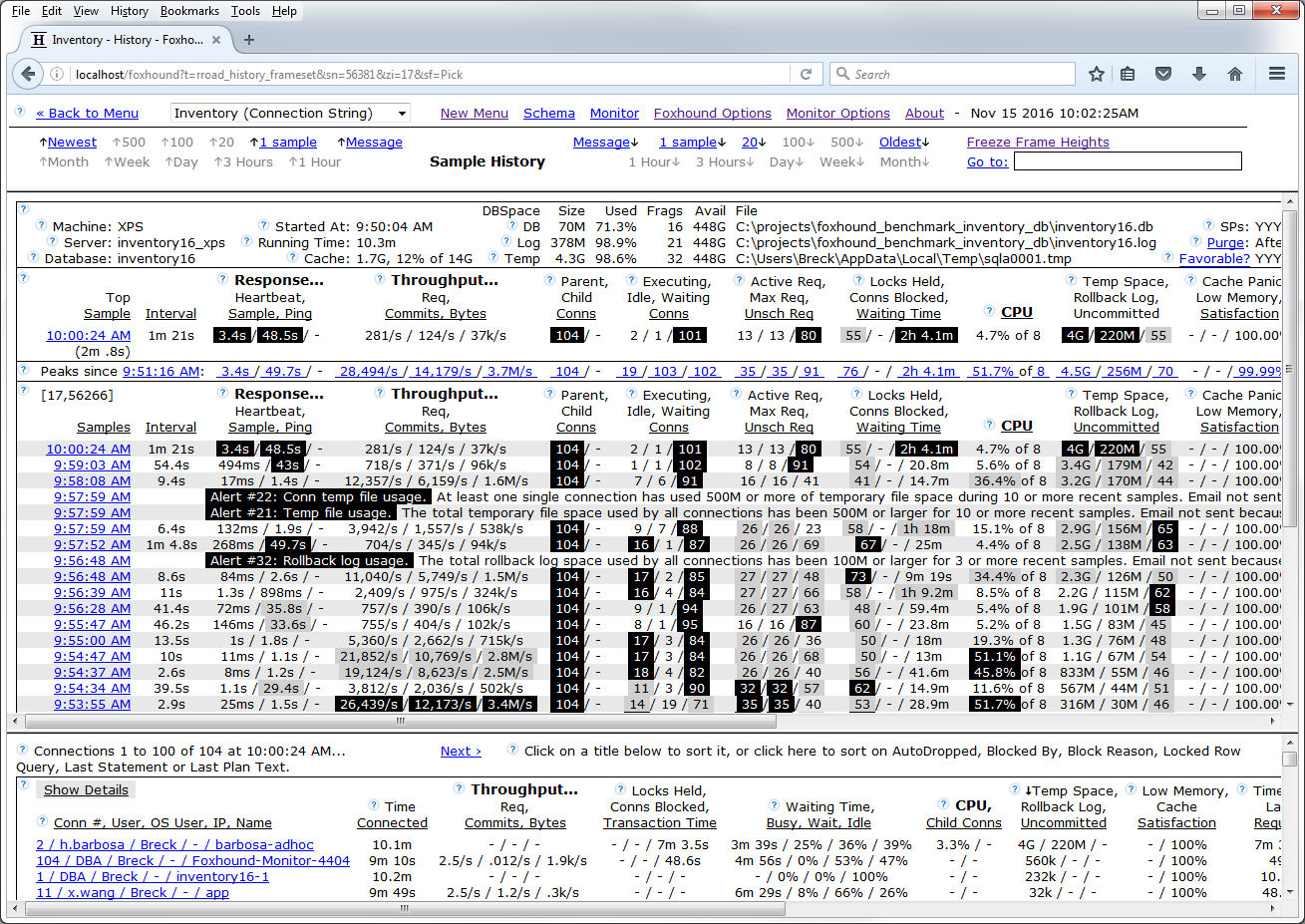

Figure 11 shows a SQL Anywhere 16 server that is behaving erratically in the face of a steady load:

The Alert #22 reveals the culprit: A single connection that is consuming Temp Space at a great rate, causing great difficulties for the other 100 connections that are trying to get something done. The other values (CPU usage, response time, etc) aren't the problem, they're symptoms of runaway Temp Space usage.

Figure 11. Runaway Memory Usage

Tip: The Connections section at the bottom of Figure 11 shows what happens when you click on the "Temp Space" column title to bring "2 / h.barbosa / Breck / - / barbosa-adhoc" to the top. You can do this with any of the Connections columns on the Monitor and Sample History pages.

Use Case 3: Large Deployments      [Top]

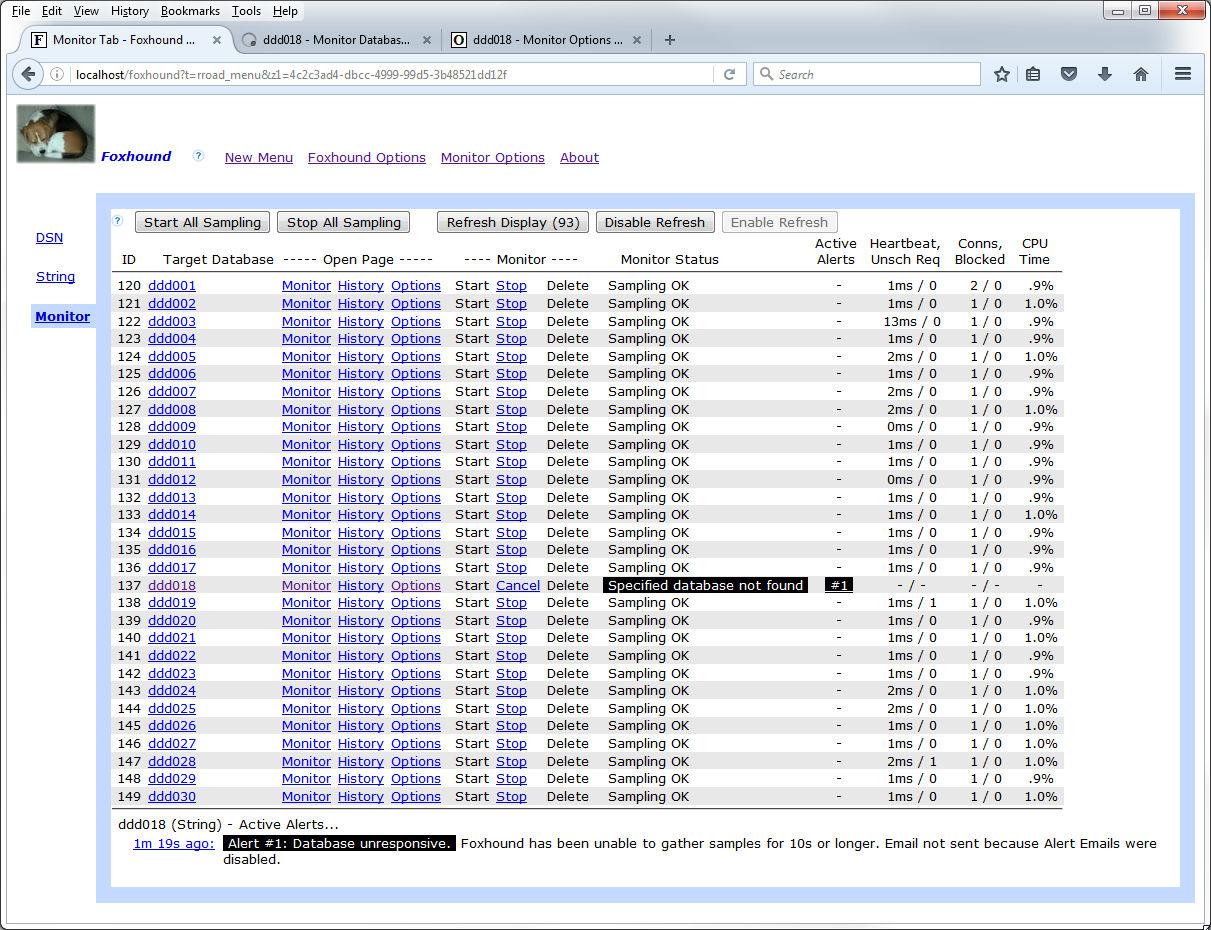

SQL Anywhere makes it easy to deploy large numbers of separate database servers on the same and different computers, each one running multiple databases. Foxhound deals with large deployments in a number of ways:

Figure 12. The Monitor Tab on the Foxhound Menu Page

-- end --      [Top]
